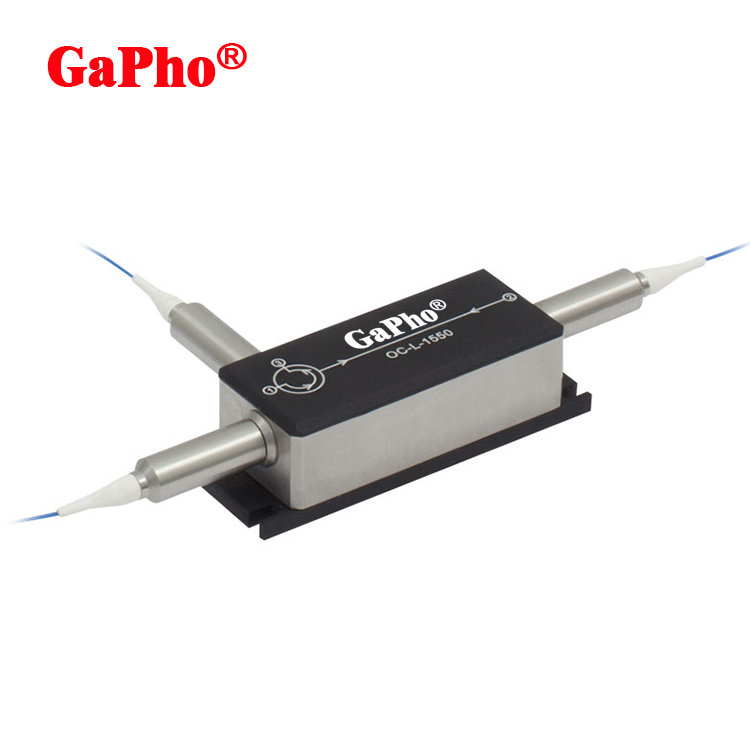

FC / APC Connector 980nm High Power Fibre Optic Circulator Single Mode

Name: FC APC Connector 980nm High Power Fibre Optic Circulator Single Mode
Brand: GAPHO
Price: 1 USD

China FC / APC Connector 980nm High Power Fibre Optic Circulator Single Mode factory

Brand Name : GAPHO

Model Number : Optical Fiber Circulator

Place of Origin : China

MOQ : 50

Price : negotiate

Payment Terms : T/T, D/A, D/P, T/T, L/C

Supply Ability : 10000

Delivery Time : 7-10 day

Packaging Details : Carton,pearl cotton,bubble bag,plastic bag

Center Wavelength : 980

Operating Wavelength Range : ±5

Typ. Insertion Loss at 23℃ : 1.3

Min. Extinction Ratio at 23℃, only for PM : 20

Max. Average Optical Power : Total: 10 (Including Port 1 & Port 2)

Max. Tensile Load : 5

Max. Peak Power for ns Pulse : 10

Storage Temperature : 0~+60

Contact Now

FC/APC connector or specify 980 nm high power circulator single mode fiber SMF-28e 980nm High Power Circulator.docx

Features

Low insertion loss
High return loss
High isolation
High stability and reliability

Application

Fiber amplifier
Testing instrument
Fiber sensor
Medical equipment

Specifications

Parameters	Unit	Value
Center Wavelength	nm	980
Operating Wavelength Range	nm	+5
Typ. Peak Isolation	dB	25
Max. Isolation at 23”C	dB	22
Typ. Insertion Loss at 23”C	dB	1.3
Max. Insertion Loss at 23°C	dB	1.5
Max. Polarization Dependent Loss at 23°C, only for PI	dB	0.15
Min. Return Loss(lnput/ Output)	dB	45
Min. Cross Talk	dB	45
Max. Average Optical Power	W	20
Max. Peak Power for ns Pulse	kW	10
Max. Tensile Load	N	5
Package Dimension	mm	64x28x26
Operating Temperature	°C	+10-+50
Storage Temperature	°C	0-+60

Package Dimensions

FC / APC Connector 980nm High Power Fibre Optic Circulator Single Mode

Ordering Information

1064	-Center Wavelength:	1064=1064nm, 1030=1030nm,980=980nm
2	-Port Type:	3=3-Port
333	-Fiber Type:	001=PM1550, 002=PM1310, 003=PM980, 004=Hi1060, 008=SMF-28E
4	-Package Dimension:	0=64x28x26mm, S=Specified
5	-Pigtail Type:	0=250pm bare fiber, 1=900pm loose tube
6	-Fiber Length:	0=0.8m,1=1m
777	-Connector Type:	0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC, N=None
88	-Average Power:	00=500mW, 01=1W, 02=2W,...... 05=5W, 10=10W
99	-Peak Power:	10=10kW, 20=20kW

FC / APC Connector 980nm High Power Fibre Optic Circulator Single Mode

Package&shipping

FAQ

Q:Can you design and customize production according to my requirements

A:Yes, you can tell us your requirements and ideas, we can design drawings, or provide samples, 2D floor plans or 3D drawings (support proe, solidwork, core, Auto CAD, DXF, DWG, step file

formats).

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q:What certificate we have?

A: ISO 9001: 2015, RoSH, CE, High and New Tech Enterprise Certficate.
